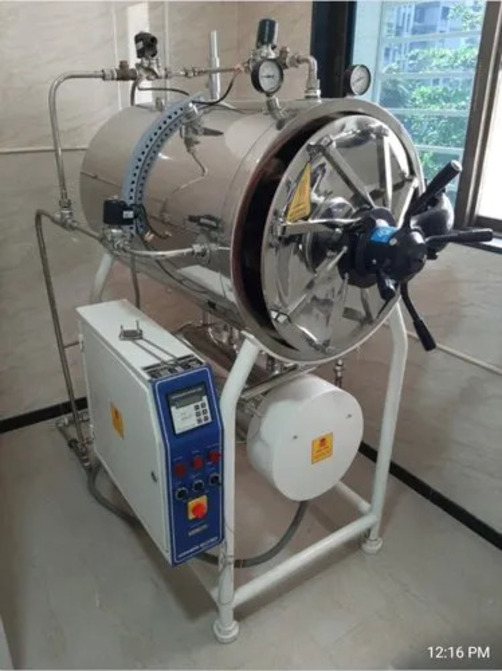

Semi Automatic Cylindrical Autoclave

Name: Semi Automatic Cylindrical Autoclave
Brand: HOSPHARMA INTERNATIONAL
Price: 180000.0 INR
Availability: InStock

Price 180000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Semi Automatic Cylindrical Autoclave Specification

Type
Semi Automatic Cylindrical Autoclave

Chamber Size
400 mm (Dia) x 600 mm (Depth)

Chamber Thickness
8 mm (SS 304)

Outer Size
900 mm (L) x 600 mm (W) x 1500 mm (H)

Compressed Air
6-8 Bar required for operation

Door Type
Cylindrical radial lock door, manually operated

Design Pressure
2.4 Bar

Working Pressure
1.2 Bar

Design Temperature
Up to 140C

Heat Uniform
1C at 121C

Insulation
Mineral wool, 50 mm thick

Net Weight
Approx. 230 kg

Recording Parameters
Digital temperature and pressure recorder (optional chart recorder)

Spraying Mode
Rotary, with uniform distribution

Outer Trolley
Included, detachable stainless steel frame for ease of movement

Inner Trolley
Removable stainless steel perforated trolley

Spraying Piping
Stainless steel seamless pipes for uniform spraying

Steam
Saturated, supplied externally or via built-in generator

Sterilizing Temperature
121C - 134C

Working Temperature
Up to 134C

Sterilization Time
15-60 min adjustable

Temperature Scope
Ambient to 135C

Piping System
304 grade stainless steel piping

Valves
Safety, pressure release, drain and air inlet valves - all stainless steel

Power Consumption
6 kW - 12 kW (Depending on model)

End Connection
DIN standards compliant

Display
LED/LCD panel showing process parameters

Power Supply
220V/50Hz or 440V/3 Phase, as required

Heater Element
ISI marked, fast heat-up time

Drainage
Bottom flush type, quick discharge

Controller
Digital microprocessor-based control panel with automatic PID adjustment

Alarm System
Buzzer and indicator for cycle completion and safety warnings

Mounting
Heavy duty stand with caster wheels

Water Level Indicator
Provided, automatic cutoff at low levels

Safety Features
Door interlocks, overpressure and overtemperature cutoffs

Gasket
Silicone, high temperature resistant

Material of Construction
Inner & Outer chamber SS 304/316, argon arc welded

Semi Automatic Cylindrical Autoclave About

Hospharma a brand to trust upon Quality, Spares and Post Slaes Service.We cater to wide range of Industries such as Hospitals, Pharmaceuticals,Laboratories, Medical colleges, Universities etc.Available in STD as well as GMP model in Manual Semi or Fully Automatic & designed to safely and efficiently sterilization while eliminating harmful microorganisms.

Additional Information:

Packaging Details: Export Quality Wooden Crate Packing

Advanced Digital Control

Equipped with a digital microprocessor-based control panel, the autoclave offers intelligent process regulation through automatic PID adjustments. The LED/LCD display allows real-time visibility of all key parameters, ensuring maximum control and safety with every operation.

Robust Construction and Safety

Manufactured from premium SS 304/316 stainless steel and argon arc welded, the autoclave ensures longevity and reliability. Comprehensive safety features include door interlocks, overpressure and overtemperature cutoffs, and a foolproof alarm system for cycle completion and warnings.

Efficient and Ease of Use

Fast heat-up ISI-marked heater elements, water level indicators with automatic cut-off, and rotary spraying enhance operational efficiency. Detachable trolleys and heavy-duty caster wheels simplify loading and transport, ensuring seamless usage in demanding environments.

FAQ's of Semi Automatic Cylindrical Autoclave:

Q: How does the digital microprocessor-based controller benefit the autoclave process?

A: The digital microprocessor-based controller incorporates automatic PID adjustment to maintain precise temperature and pressure settings throughout the sterilization cycle, resulting in consistent, reliable performance and reduced risk of parameter fluctuation.

Q: What safety features are provided in the Semi Automatic Cylindrical Autoclave?

A: The autoclave includes door interlocks, overpressure and overtemperature cutoffs, audible and visual alarms for cycle completion and safety, and automatic power cut-off in case of low water levels to protect both users and samples.

Q: When should I use the water level indicator and what happens if water is low?

A: You should regularly check the water level indicator before starting a cycle. If the level drops too low during operation, the autoclave automatically cuts off the heating to prevent damage and ensures user safety.

Q: Where can this autoclave be installed and what are its mounting options?

A: Designed for versatility, the autoclave can be installed in medical, laboratory, or industrial settings. It is mounted on a heavy-duty stand with caster wheels for stability and convenient relocation as needed.

Q: What processes are controlled by the digital panel throughout the sterilization cycle?

A: The digital panel manages heating, pressure, sterilizing temperature (121C-134C), process duration (15-60 minutes), and real-time safety checks, while also displaying status on the LED/LCD interface.

Q: How does the spraying and drainage system enhance sterilization efficiency?

A: The rotary spraying mode with stainless steel seamless pipes ensures uniform steam distribution for effective sterilization. The bottom flush-type drainage allows for rapid discharge, minimizing downtime and residue build-up after each cycle.
